Fast, bidirectional high voltage digital isolation

APEC Conference and Expo 2012

Full-Duplex Digital Isolator for Fast
Bi-Directional Communication Across a
High-Withstand Barrier

Presenter: Bill Morong, PE

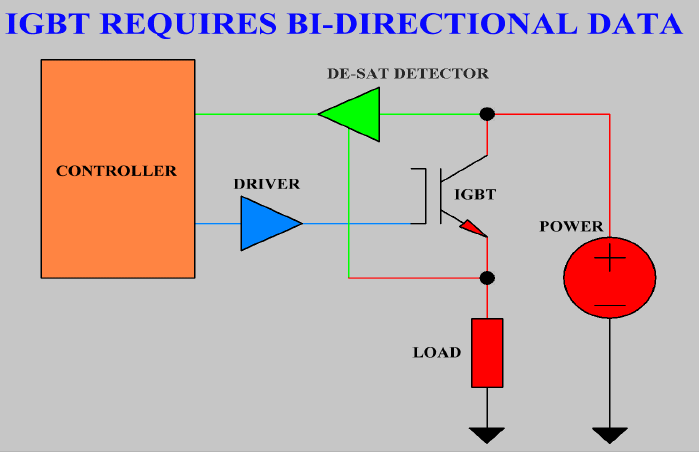

Requirements for IGBT Drivers

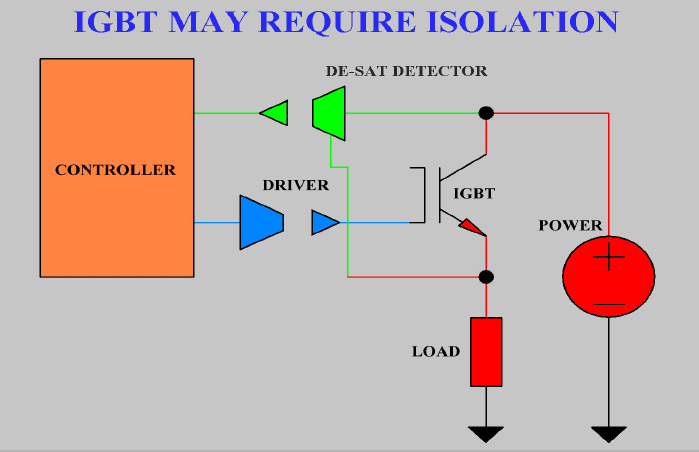

Fast, Reliable, High-Voltage Isolation

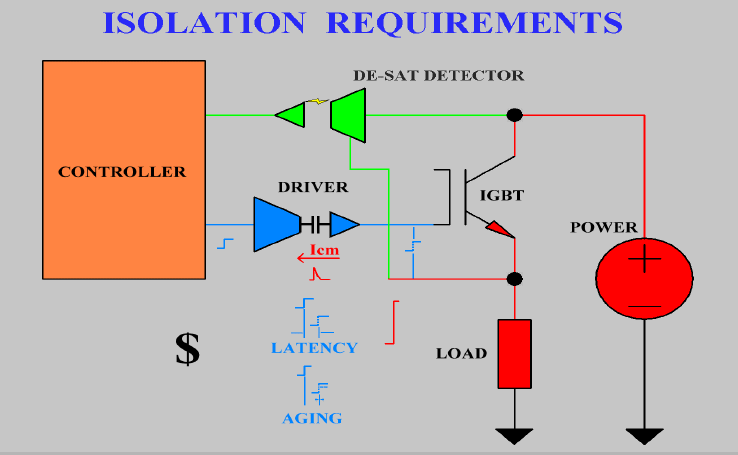

Low-Latency, Long Life, Low Cost

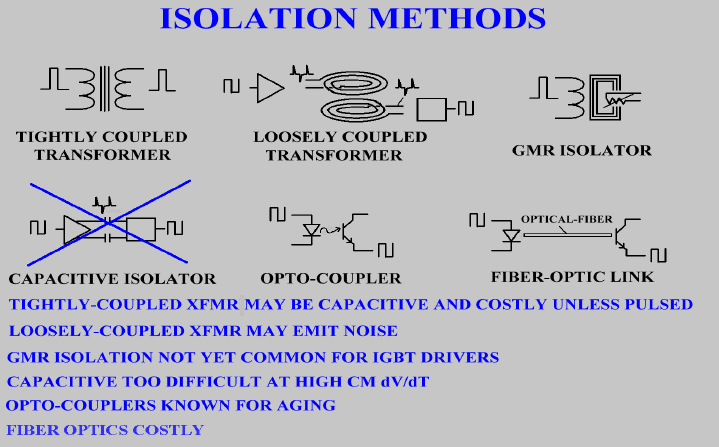

Choices Limited by DV/DT Requirements

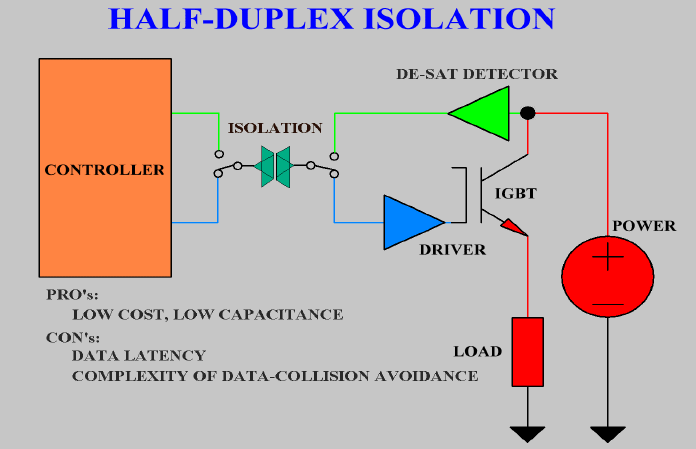

One Possible Solution

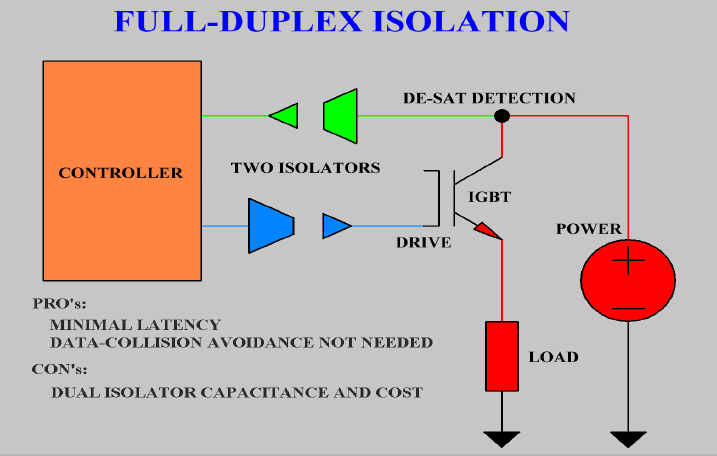

Best Current Practice

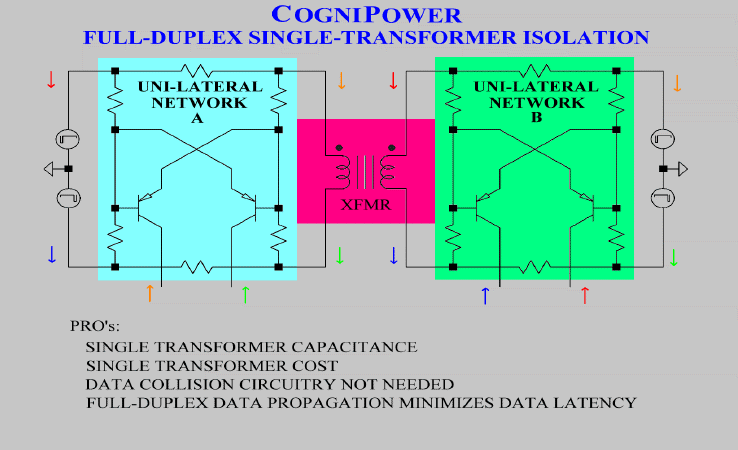

Patent-Pending Digital Isolator

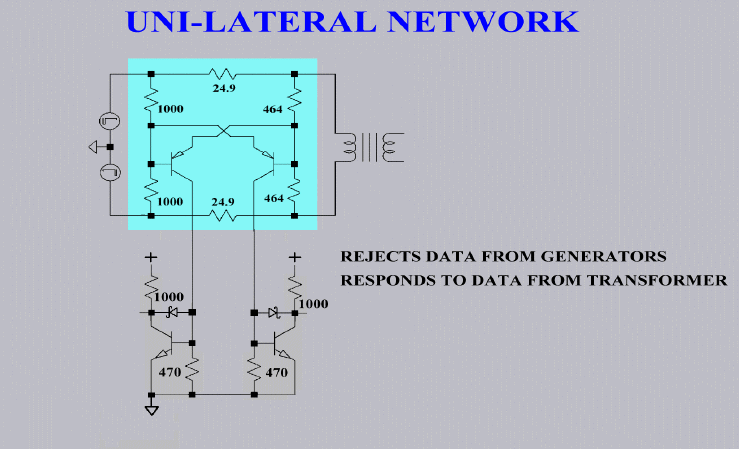

The Key to the Technique

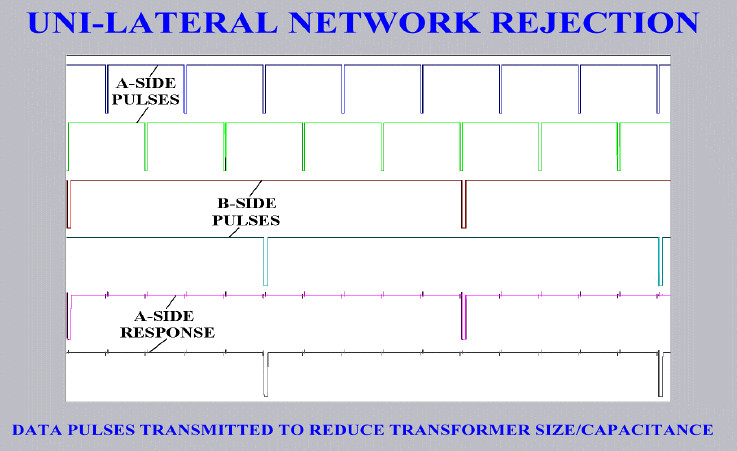

Pulse Waveforms in SPICE

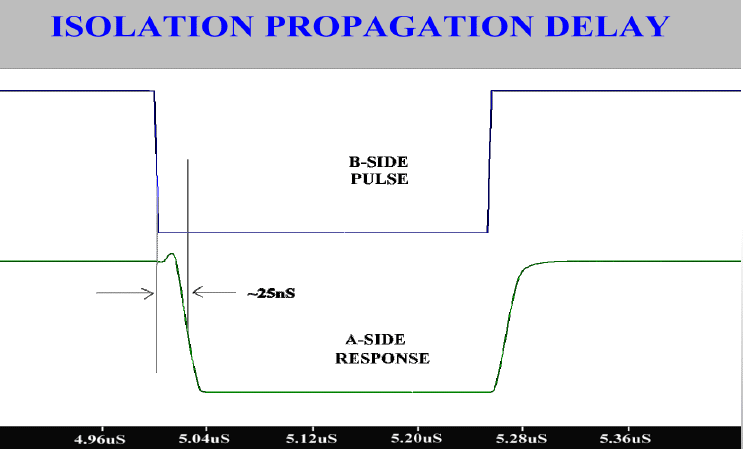

Latency of 25 nS

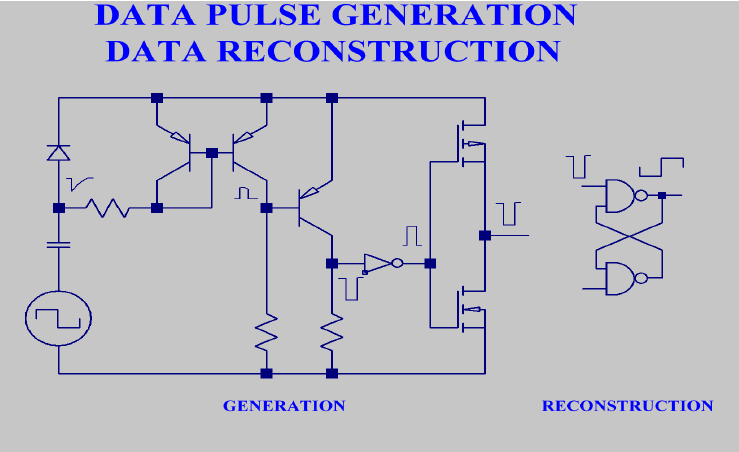

Simple Data Reconstruction

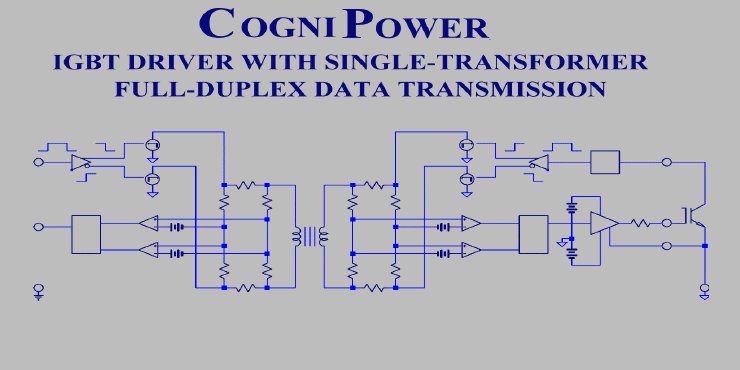

IGBT Driver Application

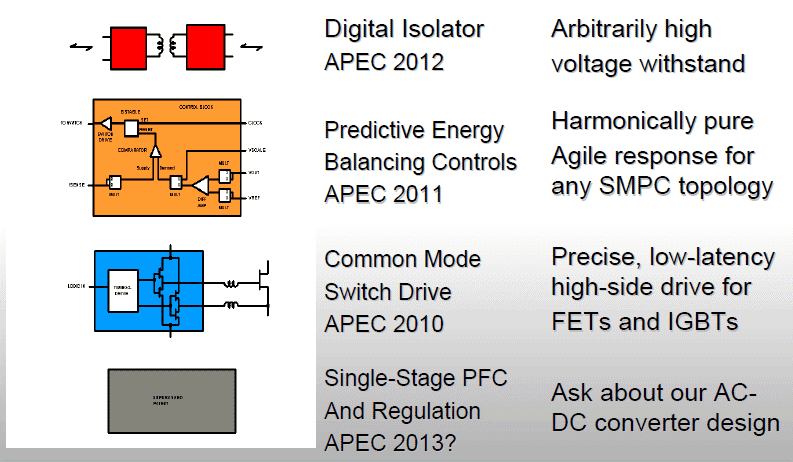

Building Blocks

3217 Phoenixville Pike

Malvern, PA 19355
